Authorized Defense-Registered
Machinery for Plate-Fin Cooler Production

Defense programs require durable joints, stringent documentation, and controlled geometries before any brazing. Tube Fabrication Machine provides tube processing and fin/finned-tube equipment with recipe locking, material/lot tracking, and in-process metrology, engineered for secure environments and staged deployment.

Program Outcomes

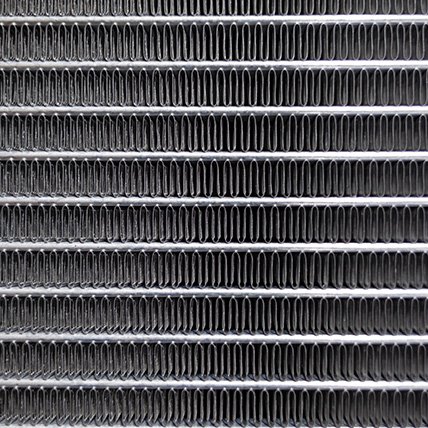

Tube-and-Fin Core Architectures

Specialized configurations optimized
for critical furnace and vacuum brazing.

Documented Recipes & Fixtures

Documented recipes & fixtures tied to serial/lot IDs

Pressure-Validated Integrity

100% hydraulic testing (≥1.2MPa) ensuring zero-leakage performance.

Ruggedized Modular Assembly

Scalable heavy-duty units engineered for secure, rapid system integration.

Manufacturing Route (Front-End)

Tube Fabrication Machine provides defense-qualified processing stations for critical thermal management components, engineered to meet military specifications for durability, traceability, and secure operation.

  • Tube Processing Stations

    • Straighten & Chipless Cut
    • Precision Flat-Tube Sizing
    • Multi-station End Forming
    • High-Frequency Tube Welding
    • Automated Cleaning & Deburring

  • Fin & Finned-Tube

    • Continuous Fin Roll-Forming
    • Precision Tension Wrapping
    • Automated Welding & Bonding
    • Helical Fin Calibration
    • Bond Quality Verification

  • Data & Compliance

    • Recipe-Locked Parameters
    • Authorized Access Control
    • End-to-End Audit Trails
    • Real-time Pressure Validation
    • Secure Data Export Protocols

Key Equipment Modules

We integrate with your qualified vacuum brazing, machining/cleaning, and EOL verification processes and can align data schemas for audits/witnessing.

Tube Flatting Machine

For high-precision automatic tube flattening

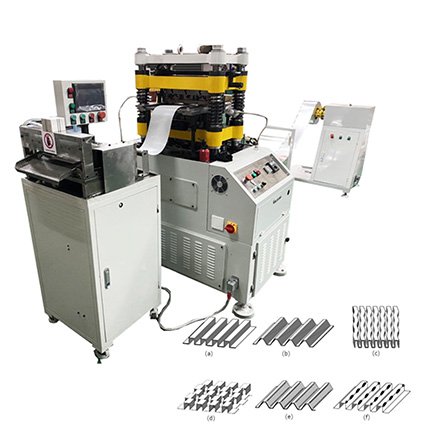

Fin Stamping Press Machine

For rolling high-density aluminum alloy strips

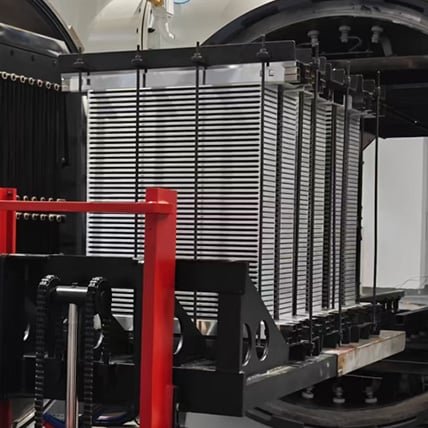

Vacuum Brazing Machine

For vacuum welding of tubes and fins

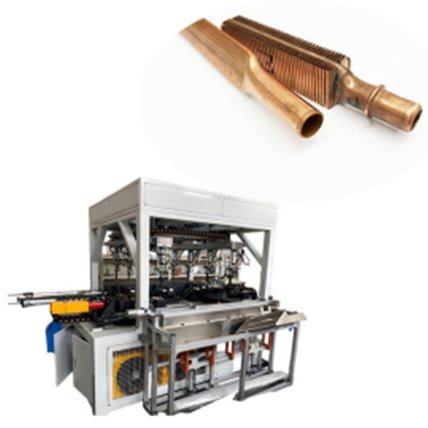

Custom Cells

For manufacturing specialized and custom cooling products
Quote Now

Authorized Defense-Access Traceability and Secure Documentation

Serialized inspection records providing full-cycle internal audit trails.

Case Snapshot

Defense Cooler Prep Cell

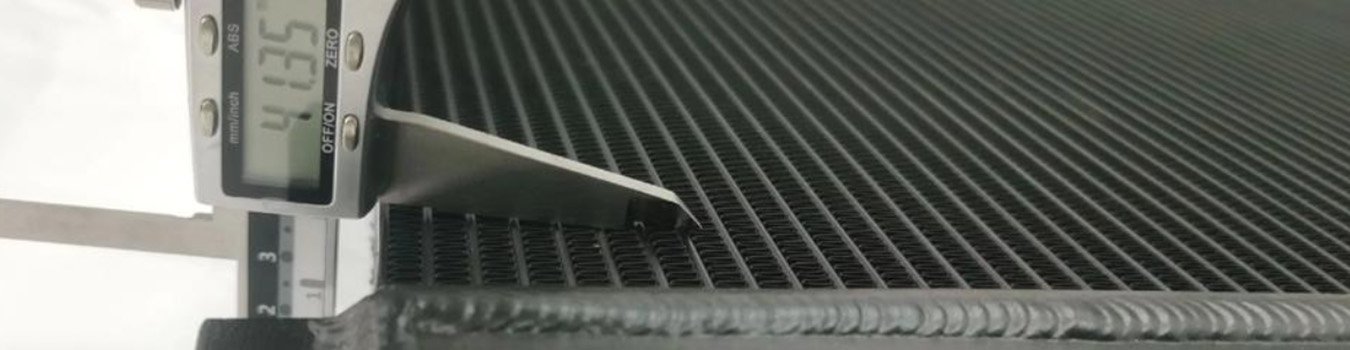

Tube front-end + finned-tube formation with secure data. Result: Verified dimensions, repeatable cycle time, and audit-ready records.

Mission-Ready Front-End Cells with Full Traceability

Provide materials & OD ranges, tolerances, inspection plans, IT/PLC policies, and timeline. We’ll return a secure configuration and validation plan.

FAQs

Got questions? Take a look at our quick answers caring for your concerns.

Setpoints/actuals for forces, positions, lengths, radii, fin density, and operator IDs.

The system will fully record all key process control parameters, including set values and actual values, covering core data such as forming force, motion position, pipe length, bending radius, and fin density, along with the operator identity (ID) and timestamp. All data is automatically collected by PLC and stored in the quality database of the equipment, and can be synchronously exported to your company’s QMS/MES system.

This closed-loop traceability system ensures process consistency, facilitates traceability analysis and quality verification, and meets the strict requirements of the aerospace and military industries for data integrity and production accountability.

Yes, the cooperation support will not end after the warranty period. But the price of component for replacement should be at cost price, while in the warranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

We specialize in front-end tube/fin prep and integrate with your qualified downstream assets.

We focus on the front-end pipe and fin preparation process to ensure dimensional accuracy, cleanliness and geometric stability before assembly.Tube Fabrication Machine does not directly provide vacuum brazing equipment or final inspection systems (airtightness/flow detection), but our front-end equipment is fully compatible with your existing qualified downstream assets and can achieve standardized data interfaces and mechanical connection.

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Yes. We provide on-site set up services. Install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solutions.
