Industrial Heat Exchanger Tube & Fin Manufacturing Solutions

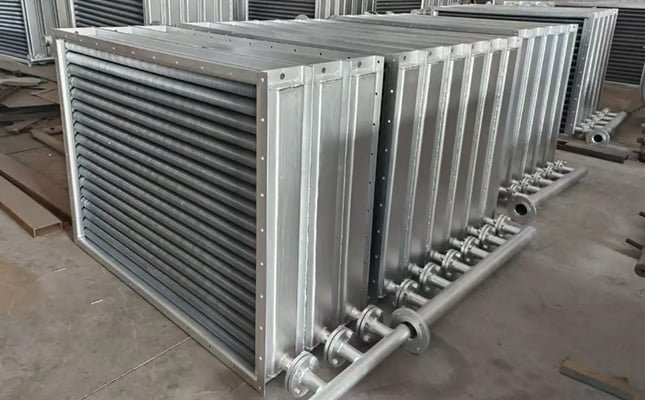

For industrial heat exchangers used in HVAC, refrigeration, electronics cooling, energy and process industries, Tube Fabrication Machine supplies the tube and fin side of your manufacturing flow. Our portfolio covers tube straightening & cutting, chipless cutting, end forming, hairpin/serpentine bending, tube welding, and fin & finned-tube machinery. We integrate these modules into custom or turnkey front-end cells, engineered to match your lead time, part spectrum, and plant layout—while interfacing cleanly with your downstream assembly, brazing/welding and end-of-line test assets.

What You Can Expect

Full Line Craft

Balanced takt across tube prep and fin/finned-tube processes

Full Type Machines

Short changeovers via quick-change tooling and recipe libraries

Assured Quality Control

Stable first-pass yield with in-process checks and digital traceability

One-Stop Service

Seamless execution from production to installation and final commissioning.

Your Challenges, Addressed

Industrial programs juggle multiple alloys (copper, aluminum, stainless), small-to-large ODs, mixed batch sizes, and strict dimensional/leak performance. Frequent ECOs stress uptime. We standardize tooling interfaces, lock critical geometries (end forms, bend radii, fin density), and package documentation so you scale without drama.

  • Multi-Material Processing

    Multi-alloy, multi-diameter tube routes with verified end forms, such as copper, aluminium, stainless steel tube processings.

  • Various Tube Types

    Hairpin & serpentine repeatability under tight bend radius/ovalization limits, 3D shapes, L shapes, C shapes, and return types.

  • Custom Machine Targets

    Fin & finned-tube density/height control for stable heat-transfer targets, such as Precise Bend Angles within 0.1° Accuracy (Patent No.: ZL 2011 1 0092227. X)

  • Shifts Turnover Efficiency

    Maintenance planning and spare kits for sustained OEE, scheduled capacity, and minimized downtime between production shifts.

Precision Process Architecture

Unifying tube fabrication, fin production, and real-time precision inspection into one seamless workflow.

  • Tube Line

    • Straightening & cutting (chipless)
    • End forming (reduce/expand/flaring/beading)
    • Hairpin/serpentine bending
    • Optional orbital/spot welding for sub-assemblies

  • Fin & Finned-Tube

    • Coil payoff
    • Fin press/formation
    • Trim/stack or finned-tube forming/wrapping
    • In-process checks

  • Data/Controls

    • Diameter Compliance
    • Straightness Scan
    • Defect Detection
    • SPC Tracking

Key Equipment Modules

Tube Fabrication Machine delivers complete industrial heat exchanger tube & fin solutions across all process sectors.

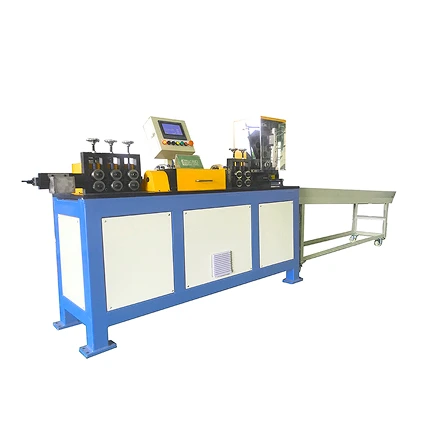

Tube Straightening & Cutting

High-throughput, burr-free, minimal chip contamination

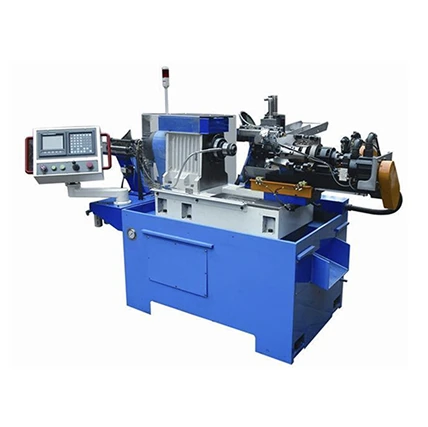

End Forming Machines

Multi-station (reduce/expand/flange/bead) with locator standards

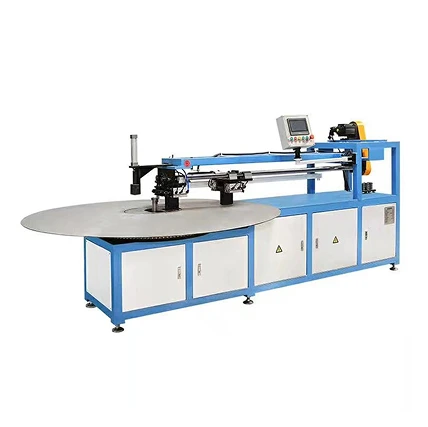

Bending Machines

Hairpin / serpentine / CNC with closed-loop radius & anti-wrinkle control

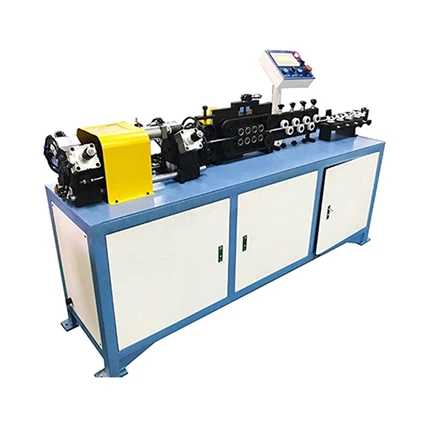

Chipless Cutters

Clean cuts, consistent lengths, low maintenance

Tube Welding Cells

PLC-controlled for copper/aluminum joining where required

Fin Machinery

Fin press/formation with height/density stability

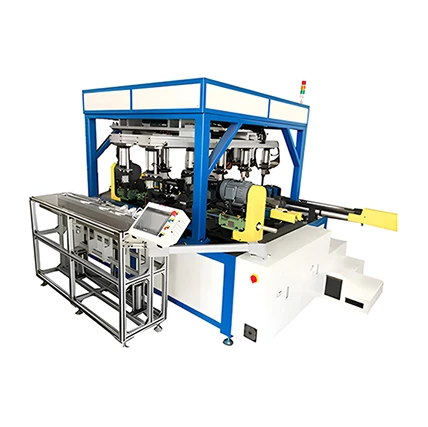

Finned-Tube Machinery

Fin forming & wrapping with bond-quality control

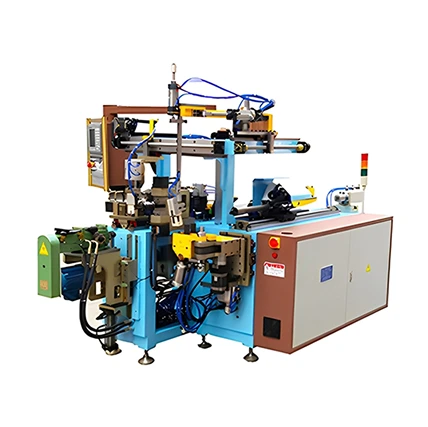

Custom Integrated Systems

One-flow cells combining straightening, cutting, forming, bending, and ID/traceability
Quote Now

Quality & Documentation

Inline checks track tube length, end-form dimensions, bend radius/ovalization, and fin height/density. Recipes, force/torque signatures, and inspection results store against serial/lot. You get digital reports and version-controlled parameters for audits.

Industrial Snapshots

Electronics Cooler Tubes

Straightening + chipless cutting + multi-end forms + serpentine bending

Result： <30-min changeovers, FPY >98%.

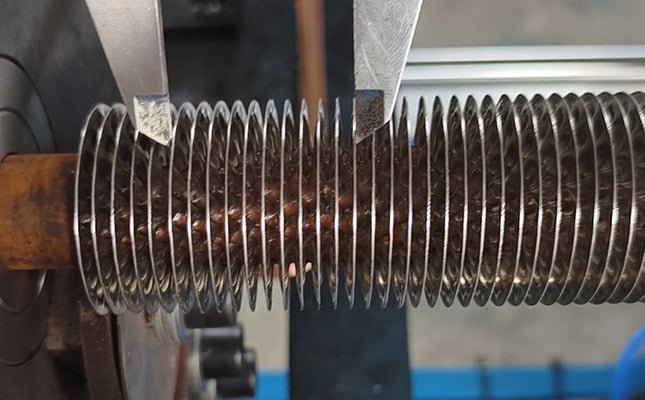

Process-Duty Finned-Tubes

Fin formation/wrapping with bond control

Result： tighter thermal performance window, simplified QA.

Request an Engineered Quote (24-Hour Response)

Share your materials & ODs, target takt, bend & end-form specs, fin/finned-tube targets, layout constraints, and integration needs. We’ll return a cell layout, station list, and options.

FAQs

Got questions? Take a look at our quick answers caring for your concerns.

Yes, the cooperation support will not end after the warranty period. But the price of component for replacement should be at cost price, while in the warranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

Closed-loop radius control, intelligent mandrel/pressure-die strategies, and ovalization checks.

During the bending process, sensors continuously monitor the bending radius and wall thickness changes of the pipe material, and the control system can automatically compensate for material springback and cross-sectional deformation.

The intelligent mandrel system can adjust the support position and lubrication pressure in real time according to the bending Angle and material characteristics, effectively preventing thin-walled or multi-layer tubes from wrinkling, flattening or cracking during bending.

Yes. Tube Fabrication Machine offers you custom alloys and types of tube and finned tube machines, including CNC, 3D bending, straightening, cutting, forming, welding tubing crafts, and parts feeding stations.

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Yes. We provide on-site set up services. Install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solutions.
